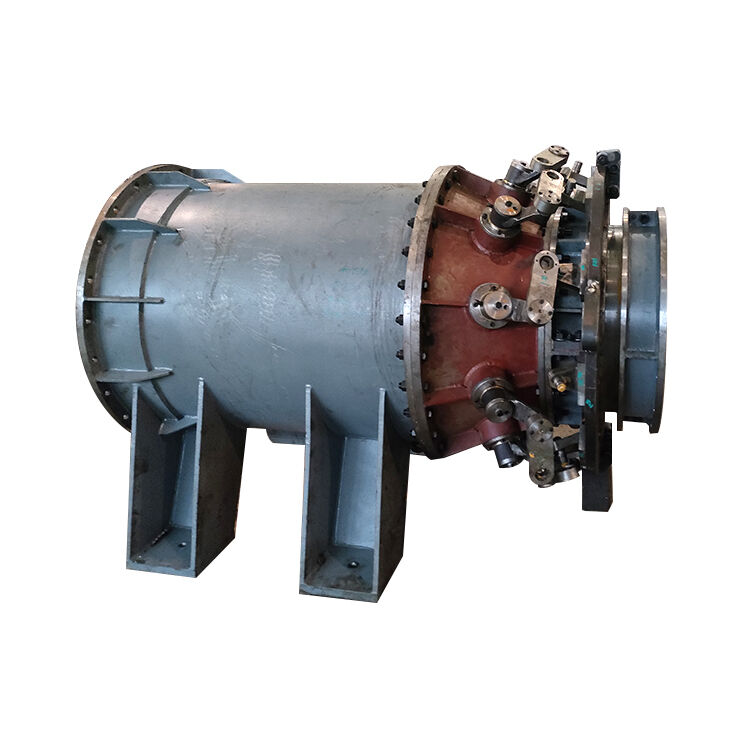

1.0 M Runner Diameter High Head Water Turbine with Brushless Excitation Control System and Stainless Steel Runner
Dettagli:
| Marca: | Wawushan |
| Certificazione: | ISO9001 |
| Model Number: | T-202501 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | 60000 |
| Imballaggi particolari: | Standard |
| Tempi di consegna: | 6 mesi |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100 set all'anno |
|
Informazioni dettagliate |
|||
| Rotazione: | 1000 giri / min | diametro del corridore: | 1,0 m. |
|---|---|---|---|
| Sistema di controllo: | Eccitazione senza spazzole | testa dell'acqua: | 180 m |
| Temperatura operativa: | -10 ° C a 50 ° C. | modello: | XJ02-W-50/1*11 |
| Gamma di potenza: | 1400-2200KW | Tipo di fase: | Trifase/monofase |
| Evidenziare: | 1.0 M Runner Diameter High Head Water Turbine,Brushless Excitation Control System Hydraulic Turbine,Stainless Steel Runner Axial Flow Turbine |
||
Descrizione di prodotto
High Head Water Turbine Overview
The High Head Water Turbine is an advanced hydroelectric solution engineered to harness water power at elevations ranging from 50 to 700 meters. Designed specifically for high head applications, this turbine excels in mountainous regions and locations with significant water elevation drops. With a water head capacity of 180 meters, it efficiently converts kinetic energy into mechanical energy to drive generators for electricity production.
Core Technology Features
At the heart of this turbine is a durable stainless steel runner that ensures corrosion resistance and longevity in demanding conditions. The system incorporates a state-of-the-art brushless excitation control system for precise regulation, reduced maintenance, and enhanced reliability. Operating effectively between -10°C and 50°C, it adapts to diverse climatic conditions while maintaining optimal performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Water Head | 180 M |
| Runner Material | Stainless Steel |
| Guide Vane | Stainless Steel |
| Rotation Speed | 1000 RPM |
| Operating Temperature | -10°C to 50°C |
| Color | Blue |
| Type | Hydraulic Turbine |
| Frequency | 50Hz / 60Hz |
| Power Range | 1400-2200 KW |
| Head Range | 50-700 Meters |
Key Features
- Product Name: High Head Water Turbine
- Type: Hydraulic Turbine
- Runner Diameter: 1.0 M
- Operating Temperature: -10°C to 50°C
- Runner Material: Stainless Steel
- Frequency: 50Hz/60Hz
- Efficient axial flow turbine design for optimal performance
- Durable stainless steel construction for corrosion resistance
- Wide operating temperature range for various environments
- Ideal for high head applications with axial flow technology
- Compatible with both 50Hz and 60Hz frequency systems
Applications
The Wawushan High Head Water Turbine (Model T-202501) is engineered for diverse hydroelectric applications. Its high head capability (50-700 meters) and power output (1400-2200 KW) make it suitable for mountainous regions, run-of-river projects, dam installations, and industrial energy solutions. The bulb turbine generator design enables compact installation and easy integration into existing infrastructures.
Customization Options
Wawushan offers customized solutions for the High Head Water Turbine (Model T-202501). With stainless steel construction and compatibility with 50Hz/60Hz systems, this hydro tubular turbine can be tailored to specific project requirements. Customization includes adaptations for bulb turbine generator configurations and specialized installations.
Support & Services
Our comprehensive support includes technical assistance, installation guidance, routine maintenance, and troubleshooting. We provide system design consultations, performance optimization, operator training, and upgrade services to ensure your turbine operates at peak efficiency throughout its lifecycle.
