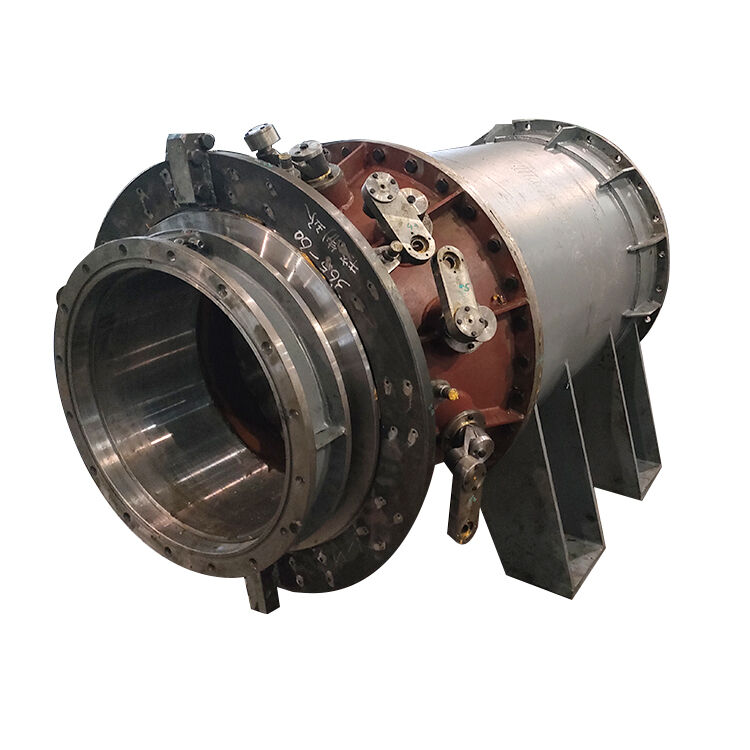

3Phase High Head Water Turbine with 180 M Water Head and 1400-2200 KW Power Range for Efficient Hydroelectric Generation
Dettagli:
| Marca: | Wawushan |
| Certificazione: | ISO9001 |
| Numero di modello: | T-202504 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | 50000 |
| Imballaggi particolari: | Standard |
| Tempi di consegna: | 6 mesi |
| Termini di pagamento: | T/T |
| Capacità di alimentazione: | 100 set all'anno |
|
Informazioni dettagliate |
|||
| Colore: | Bule | Temperatura operativa: | -10 ° C a 50 ° C. |
|---|---|---|---|
| Parola chiave: | Turbina ad acqua ad alta testa | Sistema di controllo: | Eccitazione senza spazzole |
| diametro del corridore: | 1,0 m. | Tipo di fase: | Trifase/monofase |
| testa dell'acqua: | 180 m | Gamma di potenza: | 1400-2200KW |
| Evidenziare: | 3Phase High Head Water Turbine,180 M Water Head Hydraulic Turbine,1400-2200 KW Power Range Axial Flow Generator |
||
Descrizione di prodotto
High Head Water Turbine Overview
The High Head Water Turbine is an advanced hydraulic turbine engineered to efficiently convert high-pressure water flow into electrical power. Featuring a 1.0 meter runner diameter, this compact yet powerful solution is ideal for diverse hydroelectric applications.
Key Features
- Product Name: High Head Water Turbine
- Phase Type: 3 Phase / 1 Phase
- Operating Temperature Range: -10°C to 50°C
- Rotation Speed: 1000 RPM
- Runner Diameter: 1.0 M
- Color: Blue
- Suitable for use as a bulb generator
- Efficient bulb turbine generator design
- Reliable performance for high head water applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Control System | Brushless Excitation |
| Power Range | 1400-2200 KW |
| Frequency | 50Hz/60Hz |
| Type | Hydraulic Turbine |
| Water Head | 180 M |
| Guide Vane | Stainless Steel |
| Runner Diameter | 1.0 M |
| Color | Blue |
| Rotation | 1000 RPM |
Applications
The Wawushan High Head Water Turbine (model T-202501) is designed for various hydroelectric power generation applications. With a head range of 50 to 700 meters and power output of 1400-2200 KW, it serves medium to large-scale projects including run-of-river plants, dammed reservoirs, and river diversion systems.
Customization Options
Wawushan offers comprehensive customization services for the High Head Water Turbine model XJ02-W-50/1*11. Our flexible solutions allow tailoring specifications to match specific site conditions and power requirements, supporting integration with bulb generators or tubular generators.
Support & Services
Our technical support team provides installation guidance, operational troubleshooting, and maintenance procedures. Services include system commissioning, performance testing, technical documentation, spare parts supply, and on-site service visits to ensure optimal turbine performance and longevity.
Material & Construction
Constructed from high-quality stainless steel, the runner ensures exceptional durability and corrosion resistance for long-term operation in harsh aquatic environments. The robust construction maintains structural integrity under demanding high head water flow conditions.
