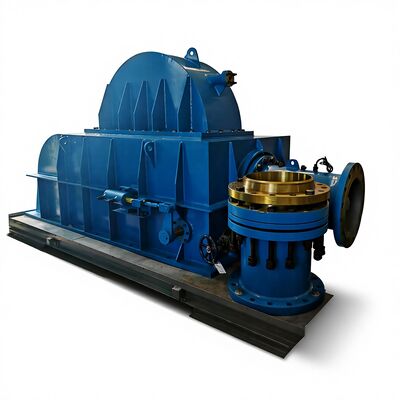

750r/min Rated Speed Pelton Hydro Turbine for 100m-800m Water Head with Stainless Steel Nozzle Ring
Dettagli:
| Marca: | Wawushan |
| Certificazione: | ISO9001 |
| Numero di modello: | CJA-202510 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 1 |
|---|---|
| Prezzo: | 50000 |
| Imballaggi particolari: | Standard |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Informazioni dettagliate |
|||
| Anello dell'ugello: | Acciaio inossidabile 0Cr13Ni4Mo (CA6NM) | Portata: | 1-200 M3/s |
|---|---|---|---|
| testa dell'acqua: | 100-800 metri | Nome prodotto: | Idro turbina di Pelton |
| Numero dell'ugello: | Ugelli doppi | Design della benna: | Doppia tazza o secchio diviso |
| Velocità nominale: | 750r/min | Livello di rumore: | Basso |
| Evidenziare: | 750r/min Rated Speed Pelton Hydro Turbine,100m-800m Water Head Pelton Water Wheel,Stainless Steel Nozzle Ring Hydro Jet Turbine |
||
Descrizione di prodotto
Rated Speed 750r/min Water Impulse Turbine for 100m-800m Water Head
The Pelton Hydro Turbine is a highly efficient and reliable solution designed for harnessing hydroelectric power from high-head water sources. Engineered for water heads ranging from 100 to 800 meters, this turbine converts kinetic energy into mechanical energy with minimal loss, making it ideal for mountainous and high-altitude regions.
Product Overview
Featuring the distinctive Pelton Water Wheel runner that can be configured as single or multi-jet, this turbine adapts to various flow conditions. The single-jet design suits lower flow rates, while multi-jet configuration handles higher flows, ensuring optimal energy capture and efficiency.
Operating at a rated speed of 750 revolutions per minute, the turbine delivers stable mechanical power output. Its low noise operation makes it suitable for installations near residential areas, while maintaining power capacities from 1 MW to 200 MW.
Key Features
- Product Name: Pelton Hydro Turbine
- Nozzle Ring Material: Stainless Steel 0Cr13Ni4Mo (CA6NM)
- High Efficiency: Up to 90% or higher
- Rated Speed: 750 r/min
- Advantages: High strength and anti-corrosion properties
- Bucket Design: Double cup or split bucket configuration
- Type: Hydro Jet Turbine (Impulse Type)
- Also Known As: Pelton Water Wheel
- Category: Reaction Hydro Turbine
Technical Specifications
| Parameter | Specification |
|---|---|
| Nozzle Ring Material | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Design Head | 200m-600m |
| Power Capacity | 1-200 MW |
| Type | Impulse Turbine |
| Flow Rate | 1-200 m³/s |
| Efficiency | Up to 90% or higher |
| Runner Type | Single or Multi-Jet |
| Water Head Range | 100m-800m |
| Rated Speed | 750 r/min |
Applications
The Wawushan Pelton Hydro Turbine (Model CJA-2025) is ideal for hydroelectric power generation in mountainous regions with water heads from 100-800 meters. Certified with ISO9001, this turbine serves small to large-scale projects with power capacities from 1-200 MW.
Primary applications include high-altitude rivers, reservoirs, dams, and remote power generation where grid connectivity is limited. Its high strength and anti-corrosion features ensure reliable operation in harsh environments with minimal maintenance.
Customization Options
Model: CJA-2025
Power Capacity: 1-200 MW
Flow Rate: 1-200 m³/s
Head Range: 50-1000 meters
Minimum Order: 1 set
Price: $50,000 per set
Supply Ability: 100 sets per unit
Delivery Time: 6 months
Payment Terms: L/C
Certification: ISO9001
Power Capacity: 1-200 MW
Flow Rate: 1-200 m³/s
Head Range: 50-1000 meters
Minimum Order: 1 set
Price: $50,000 per set
Supply Ability: 100 sets per unit
Delivery Time: 6 months
Payment Terms: L/C
Certification: ISO9001
Technical Support & Services
Our dedicated technical team provides comprehensive support including installation guidance, maintenance advice, troubleshooting, and performance optimization. We offer detailed documentation, on-site inspections, and staff training programs to maximize turbine efficiency and lifespan.
