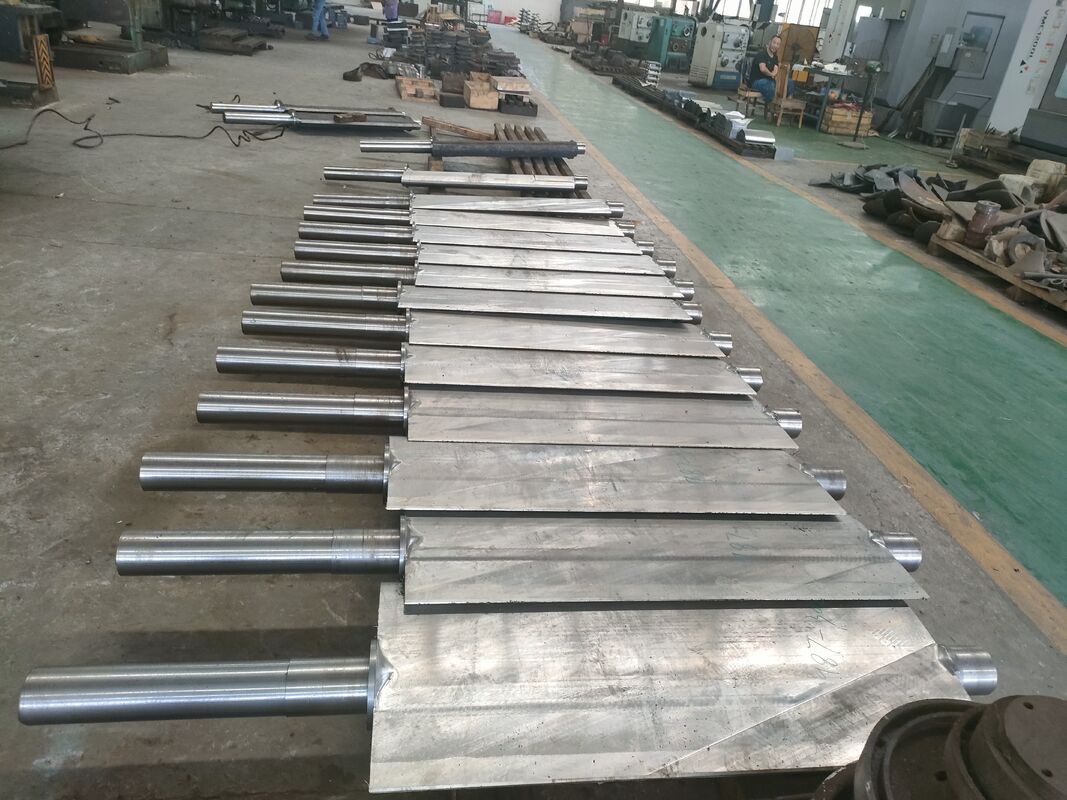

Kaplan Hydro Turbine with Stainless Steel 0Cr13Ni14Mo Blades for 2 To 70 Meters Headrange and Vertical Water Inlet
Dettagli:
| Marca: | Wawushan |
| Certificazione: | ISO9001 |
| Numero di modello: | ZDJ502-202509 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 1 |
|---|---|
| Prezzo: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Informazioni dettagliate |
|||
| ingresso dell'acqua: | Verticale | Tensione del generatore: | 6300V |
|---|---|---|---|
| Materiale lame: | Acciaio inossidabile 0Cr13Ni14Mo | Peso del corridore: | 2-50T |
| Materiale del mozzo: | Acciaio al carbonio | Headrange: | Da 2 a 70 metri |
| Costo: | Conveniente | Guida Vane Material: | ghisa inossidabile/ |
| Evidenziare: | Stainless Steel 0Cr13Ni14Mo Blades Kaplan Hydro Turbine,2 To 70 Meters Headrange Hydraulic Power Turbine,Vertical Water Inlet Water Power Turbine |
||
Descrizione di prodotto
Kaplan Hydro Turbine Overview
The Kaplan Hydro Turbine is a highly efficient water power turbine designed to harness hydraulic energy across a broad range of applications. Engineered for optimal performance within a head range of 2 to 70 meters, this turbine is ideal for various river and stream conditions where water flow can be efficiently utilized.
Key Features
- Adjustable blades for precise control and maximum energy extraction
- Water-cooled system maintains optimal operating temperatures
- Vertical water inlet configuration for smooth water entry
- Low to moderate maintenance requirements
- Competitive pricing for cost-effective energy solutions
- Runner diameter: 0.7 meters
- Generator voltage: 6300V/400V
Technical Specifications
| Head Range | 2 to 70 Meters |
| Rated Power | 2-50MW |
| Blades Material | Stainless Steel 0Cr13Ni14Mo |
| Guide Vane Material | Stainless Steel/Cast Iron |
| Hub Material | Carbon Steel |
| Cooling Method | Water Cooled |
| Water Inlet | Vertical |
| Generator Voltage | 6300V |
| Maintenance | Low to Moderate |
Applications
The Kaplan Hydro Turbine is ideal for small to medium-sized hydroelectric power plants, river dams, irrigation canals, and low-head water sources. It's particularly suitable for remote or off-grid areas where traditional power infrastructure is limited, providing sustainable and independent power generation solutions.
Customization Options
We offer customized Kaplan Hydro Turbine solutions with ISO9001 certification. Our turbines feature durable carbon steel hubs and high-quality stainless steel blades, ensuring excellent corrosion resistance and longevity. Export-grade packaging and flexible payment terms are available.
Technical Support & Services
Our comprehensive technical support includes expert consultation, on-site inspections, troubleshooting, and performance assessments. We provide tailored maintenance programs, spare parts supply, and comprehensive training for operational staff to ensure optimal turbine performance and minimal downtime.
Model Information
Model: ZDJ502
Delivery Time: 6 months
Minimum Order: 1 unit
Price Range: $50,000 - $100,000
Annual Supply Capacity: 100 units
