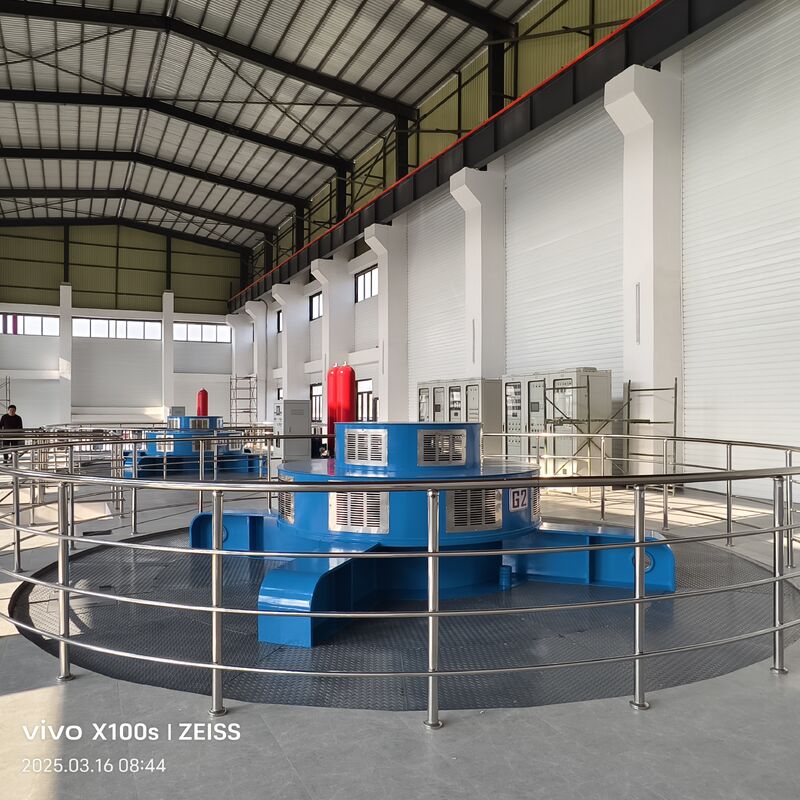

Kaplan Hydro Turbine with Stainless Steel Blade Rated Head 2-200m and Generator Voltage 6-20KV for Hydraulic Power Generation
Dettagli:
| Marca: | Wawushan |
| Certificazione: | ISO9001 |
| Numero di modello: | ZDJ50232 |
Termini di pagamento e spedizione:
| Minimum Order Quantity: | 1 |
|---|---|
| Prezzo: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Informazioni dettagliate |
|||
| Materiale: | Lama di acciaio inossidabile | Modello di disposizione: | Verticale |
|---|---|---|---|
| Tensione del generatore: | 6-20KV | Materiale della lama: | Acciaio inossidabile con CNC |
| Testa nominale: | 2-200m | Velocità nominale: | 500r/min |
| Gamma di velocità: | Tipicamente da 100 a 300 giri/min | Angolo della lama del corridore: | 15° - 30° |
| Evidenziare: | Stainless Steel Blade Kaplan Hydro Turbine,Rated Head 2-200m Hydraulic Power Generator,Generator Voltage 6-20KV Hydro Power Turbine |
||
Descrizione di prodotto
Carbon Steel Spiral Case Kaplan Hydro Turbine
The Kaplan Hydro Turbine is a highly efficient and reliable solution designed for a wide range of hydroelectric power generation applications. Engineered to perform optimally under varying water flow conditions, this hydro power turbine is ideal for harnessing the kinetic energy of water to generate sustainable and clean electricity.
Key Features
- Rated head capacity: 2 to 200 meters
- Carbon steel spiral case for durability
- Stainless steel blades for corrosion resistance
- Rated power output: 2 MW to 50 MW
- Generator voltage range: 6 to 20 kV
- Vertical layout pattern for efficient installation
- Runner types: Fixed blades and regulator blades
- Rated speed: 500 RPM
Technical Specifications
| Spiral Case Material | Carbon Steel |
| Generator Voltage | 6-20KV |
| Water Inlet | Vertical |
| Speed Range | 100 to 300 RPM |
| Flow Rate | 16.00 M³/s |
| Rated Power | 2-50MW |
| Runner Type | Fixed Blades/Regulator Blades |
| Blade Material | Stainless Steel |
| Rated Speed | 500r/min |
| Runner Blade Angle | 15° - 30° |
Applications
This advanced hydraulic turbine system is suitable for various hydro power applications including river and reservoir hydropower stations, irrigation canal power generation, and remote area electricity supply. Ideal for small to medium-sized hydroelectric power plants where reliable energy production is crucial.
Customization Options
We offer comprehensive customization services for the Kaplan Hydro Turbine, including tailored specifications to meet specific project requirements. Our hydraulic turbine systems can be adapted for various head ranges, flow conditions, and power output needs.
Technical Support & Services
Our technical support team provides comprehensive assistance throughout the turbine lifecycle, including installation guidance, operation support, maintenance services, and troubleshooting. We offer detailed technical documentation, performance analysis, and custom engineering support.
Model: ZDJ502
Certification: ISO9001
Design Life: 30+ years
Generator Type: Synchronous
Blade Processing: CNC Technology
